Function: A water heater is designed to safely heat water to a selected  temperature, then hold it for future distribution throughout the house.

What We Look At: Is the water heater sized properly for the house?  Is there evidence of leakage or corrosion on the tank; is there a properly installed pressure relief valve, is the gas line or electrical power supply connected properly?

Typical problems we see are: Scorching on the tank around the burners due to improper venting and backdrafting; insufficient combustion air supply; leakage & corrosion at water line connections to top of tank; "do-it-yourself" installations which omit safety devices such as pressure relief valves; etc.


Some Examples Of Water Heater Problems We've Encountered

(Click on the thumbnail image to enlarge)

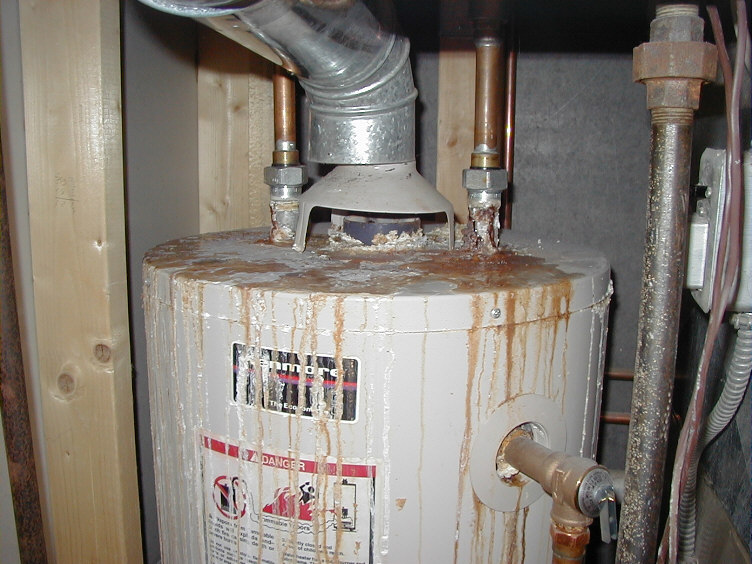

Improperly connected water lines along

the top of this water heater has ruined it.

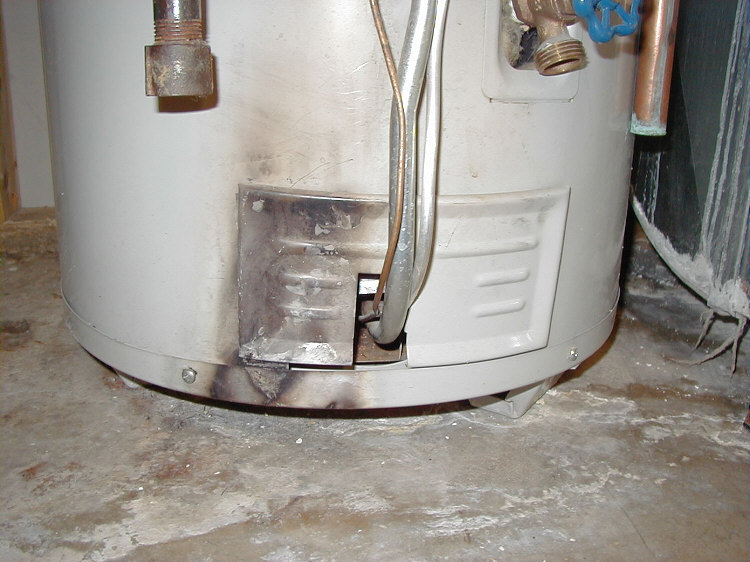

Scorching along burners indicates a

venting / drafting problem with this

water heater..

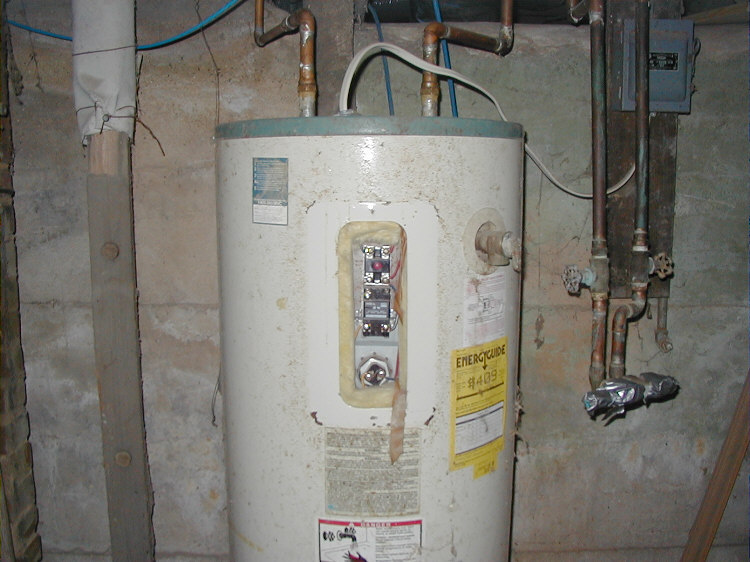

Older electric water heater with improperly

installed connections & is missing a pressure

relief valve downspout - unsafe for use.
